Propak Series

10-70 HP

Refined Design / Loaded with Features

Boilersmith JR2 Series
View printable literature – JR2 Propak Series

Highlights

  • “Off the shelf” components resulting in lower parts cost
  • Two-pass design for maximum durability
  • High output firetube configuration
  • Heavy-duty, first-class materials
  • Renowned for a long life, plus 30 years
  • Equippied with premium, packaged FORCED DRAFT burners; factory test-fired
  • Lower service costs
  • Thoughtfully engineered; enhanced by our extensive design experience
  • Excellent overall plant efficiency
  • Skillfully crafted to high standards
  • High quality — exceptional value
  • Ample steam space/release surface

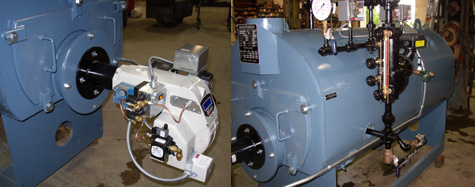

  • Door opens without removal of burner components or fuel and power lines
  • Full-sized hinged rear door for quick and easy access to tubes and refractory
  • Heavy door gaskets are intended for repeated use and are easily replaced
  • Outstanding inspection accessibility

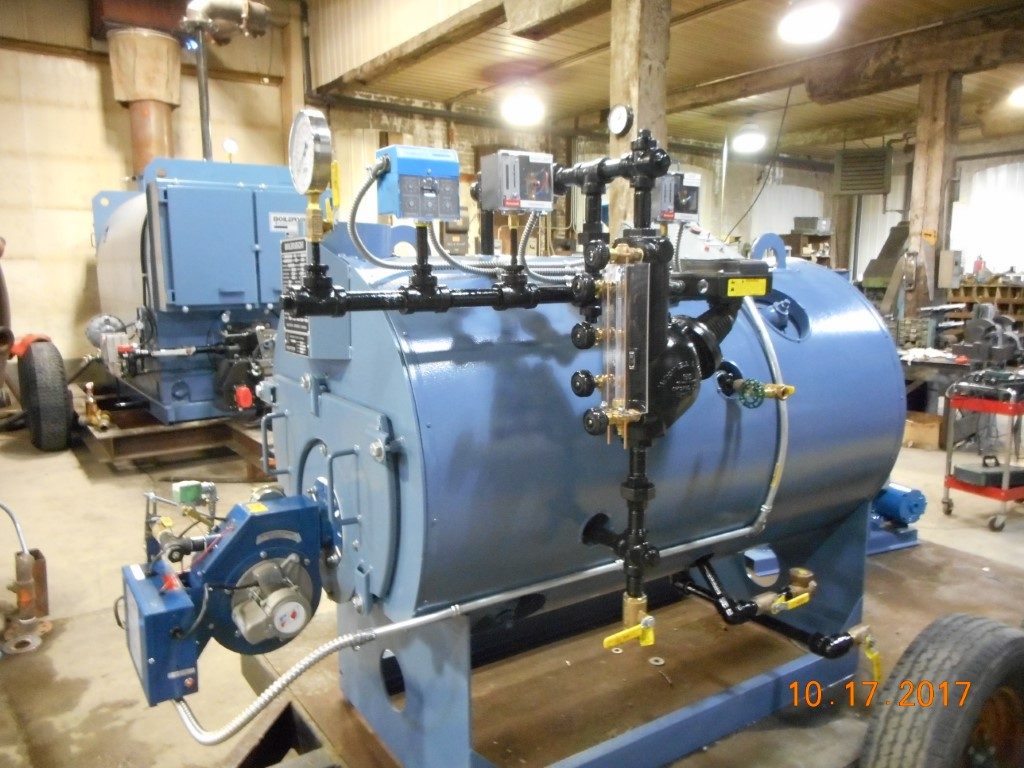

Standard Steam Trim

  • Safety valve(s)
  • Waterglass set
  • Pressure gauge
  • Gauge cock
  • Trycocks
  • Pressuretrol – high limit safety (manual reset)
  • Pressuretrol – operating
  • Pressuretrol – high fire or proportional firing (modulating) control. (Standard 30 BHP and above, optional 25 BHP and below.)
  • McDonnell & Miller 157S low water cutoff and pump control
  • Water column blowdown valve
  • Manual reset, probe type auxiliary low water cutoff control
  • Feed water check valve
  • Feed water shutoff valve
  • Ball type, quick opening, bottom blowoff valve (Optional quick opening valves are available)
  • Slow opening Y-pattern globe valve bottom blowoff valve
  • Surface blowdown skimmer pipe, ball valve and throttling valve
  • Drain valve
  • Stack thermometer

Narrow Width Feature

By avoiding troublesome, room-robbing refractory baffles, and using unique, highly effective 1-1/2 inch tube arrangements along with innovative insulation details, models as narrow as 34 inches are created. The water column can be mounted on either side and removed for passage through narrow doorways. The result is superb performance, ease of maintenance and narrow width.

Options and Alternatives

We specialize in customizing your boiler. The Propak can be equipped to suit a wide variety of installations and specifications. We will help direct you to the most cost-effective models and features.
